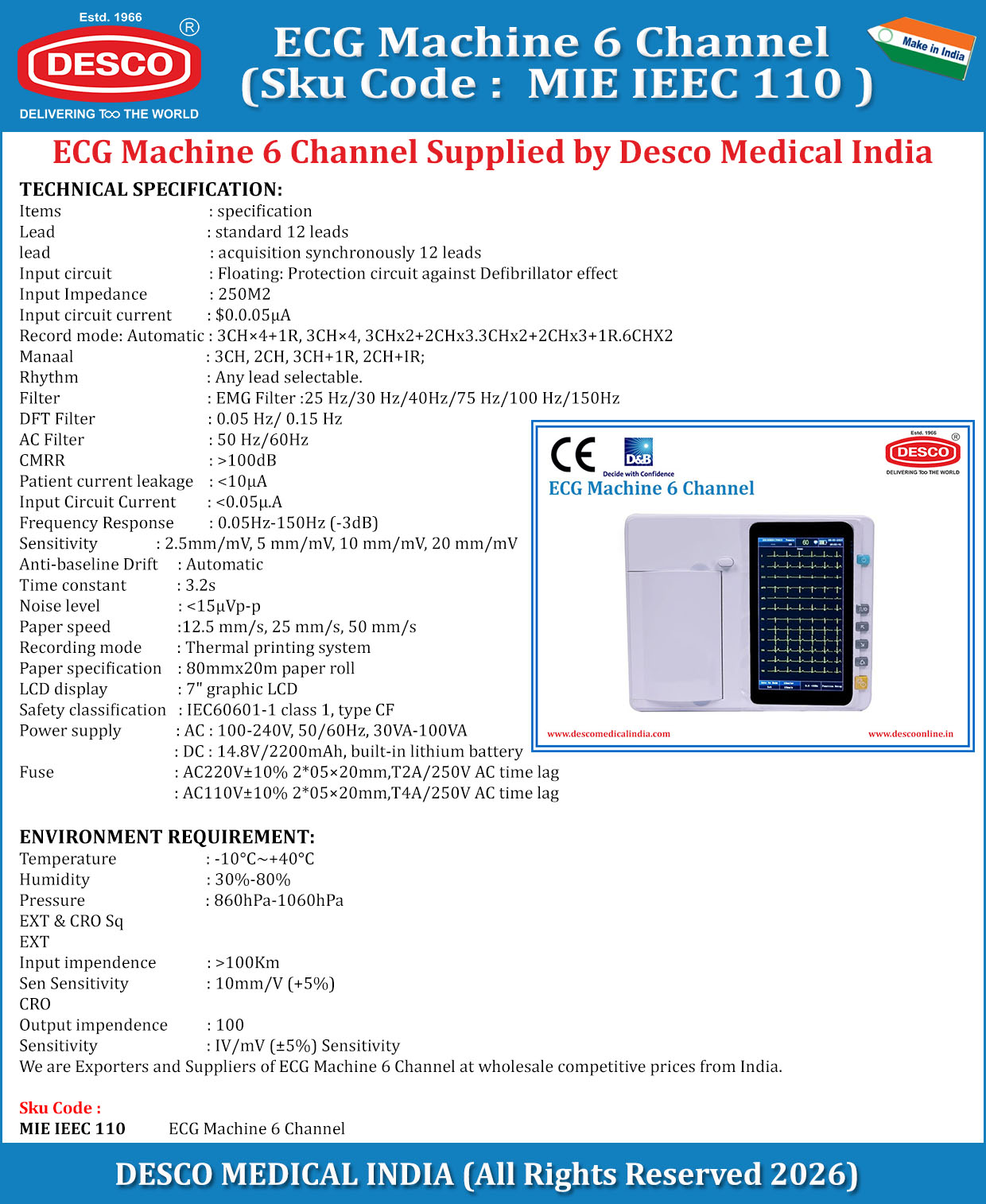

TECHNICAL SPECIFICATION:
Items : specification
Lead : standard 12 leads
lead : acquisition synchronously 12 leads
Input circuit : Floating: Protection circuit against Defibrillator effect
Input Impedance : 250M2
Input circuit current : $0.0.05µA
Record mode: Automatic : 3CH×4+1R, 3CH×4, 3CHx2+2CHx3.3CHx2+2CHx3+1R.6CHX2
Manaal : 3CH, 2CH, 3CH+1R, 2CH+IR;
Rhythm : Any lead selectable.
Filter : EMG Filter :25 Hz/30 Hz/40Hz/75 Hz/100 Hz/150Hz
DFT Filter : 0.05 Hz/ 0.15 Hz
AC Filter : 50 Hz/60Hz
CMRR : >100dB
Patient current leakage : <10μA
Input Circuit Current : <0.05μ.Α
Frequency Response : 0.05Hz-150Hz (-3dB)
Sensitivity : 2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV
Anti-baseline Drift : Automatic
Time constant : 3.2s
Noise level : <15µVp-p
Paper speed :12.5 mm/s, 25 mm/s, 50 mm/s
Recording mode : Thermal printing system
Paper specification : 80mmx20m paper roll
LCD display : 7" graphic LCD
Safety classification : IEC60601-1 class 1, type CF
Power supply : AC : 100-240V, 50/60Hz, 30VA-100VA
: DC : 14.8V/2200mAh, built-in lithium battery
Fuse : AC220V±10% 2*05×20mm,T2A/250V AC time lag
: AC110V±10% 2*05×20mm,T4A/250V AC time lag
ENVIRONMENT REQUIREMENT:
Temperature : -10°C~+40°C
Humidity : 30%-80%
Pressure : 860hPa-1060hPa
EXT & CRO Sq
EXT
Input impendence : >100Km
Sen Sensitivity : 10mm/V (+5%)
CRO
Output impendence : 100
Sensitivity : IV/mV (±5%) Sensitivity
We are Exporters and Suppliers of ECG Machine 6 Channel at wholesale competitive prices from India.
