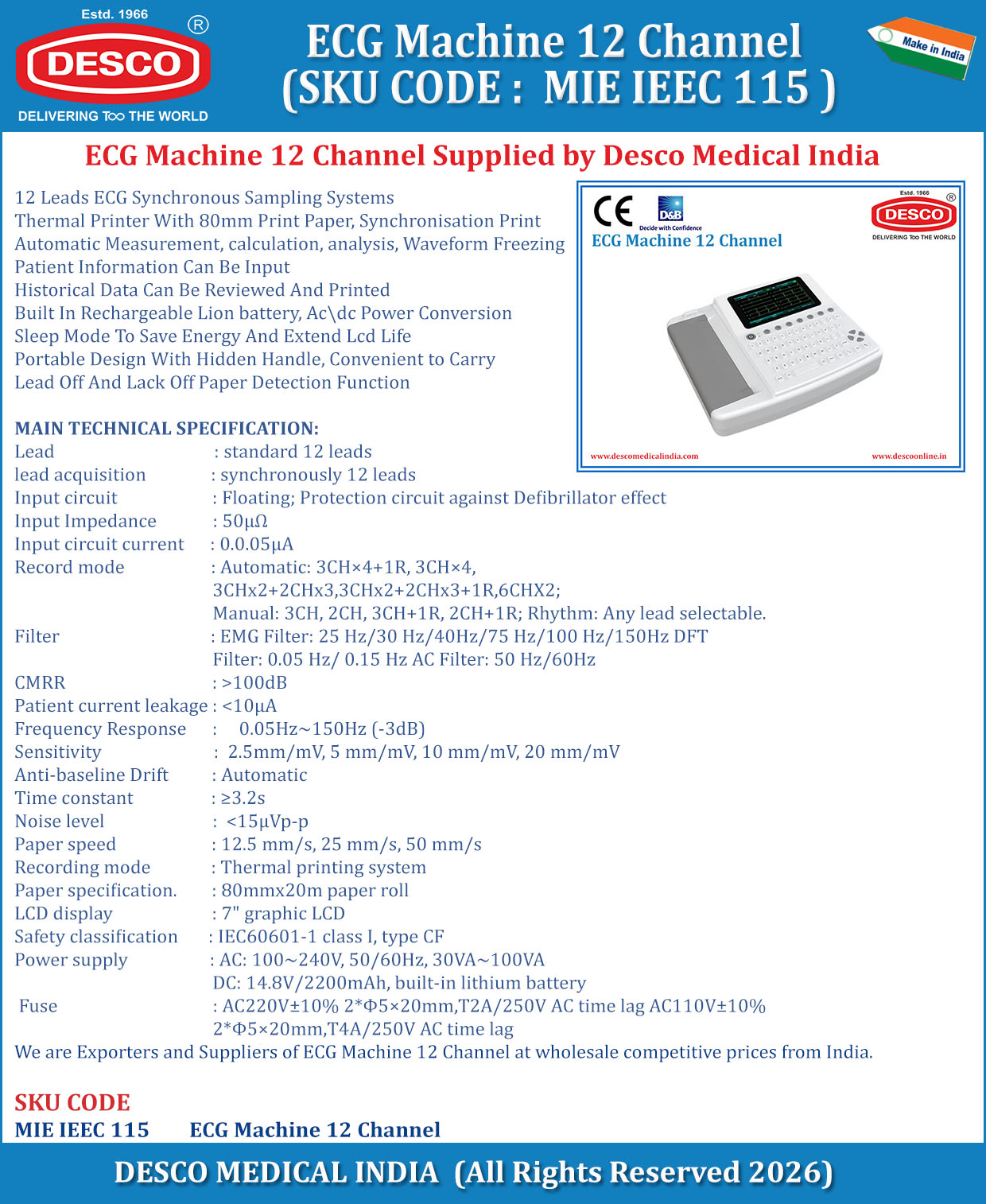

12 Leads ECG Synchronous Sampling Systems
Thermal Printer With 80mm Print Paper, Synchronisation Print
Automatic Measurement, calculation, analysis, Waveform Freezing
Patient Information Can Be Input
Historical Data Can Be Reviewed And Printed
Built In Rechargeable Lion battery, Ac\dc Power Conversion
Sleep Mode To Save Energy And Extend Lcd Life
Portable Design With Hidden Handle, Convenient to Carry
Lead Off And Lack Off Paper Detection Function
MAIN TECHNICAL SPECIFICATION:
Lead : standard 12 leads
lead acquisition : synchronously 12 leads
Input circuit : Floating; Protection circuit against Defibrillator effect
Input Impedance : 50μΩ
Input circuit current : 0.0.05μA
Record mode : Automatic: 3CH×4+1R, 3CH×4,
3CHx2+2CHx3,3CHx2+2CHx3+1R,6CHX2;
Manual: 3CH, 2CH, 3CH+1R, 2CH+1R; Rhythm: Any lead selectable.
Filter : EMG Filter: 25 Hz/30 Hz/40Hz/75 Hz/100 Hz/150Hz DFT
Filter: 0.05 Hz/ 0.15 Hz AC Filter: 50 Hz/60Hz
CMRR : >100dB
Patient current leakage : <10μA
Frequency Response : 0.05Hz~150Hz (-3dB)
Sensitivity : 2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV
Anti-baseline Drift : Automatic
Time constant : ≥3.2s
Noise level : <15µVp-p
Paper speed : 12.5 mm/s, 25 mm/s, 50 mm/s
Recording mode : Thermal printing system
Paper specification. : 80mmx20m paper roll
LCD display : 7" graphic LCD
Safety classification : IEC60601-1 class I, type CF
Power supply : AC: 100~240V, 50/60Hz, 30VA~100VA
DC: 14.8V/2200mAh, built-in lithium battery
Fuse : AC220V±10% 2*Φ5×20mm,T2A/250V AC time lag AC110V±10%
2*Φ5×20mm,T4A/250V AC time lag
We are Exporters and Suppliers of ECG Machine 12 Channel at wholesale competitive prices from India.
