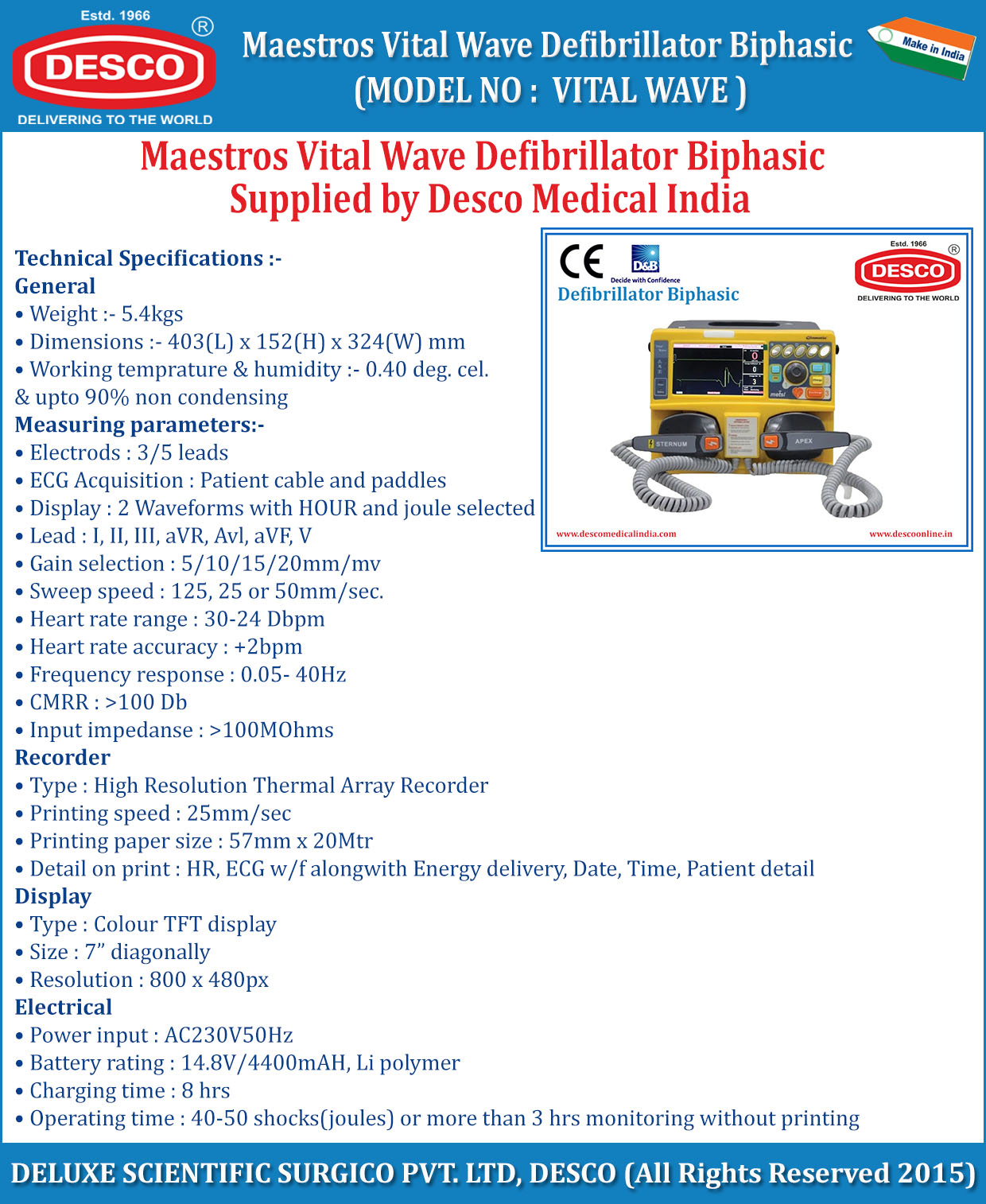

MAESTROS VITAL WAVE DEFIBRILLATOR BIPHASIC MANUFACTURED BY DESCO MEDICAL INDIA

Technical Specifications :-

General

• Weight :- 5.4kgs
• Dimensions :- 403(L) x 152(H) x 324(W) mm
• Working temperature & humidity :- 0.40 deg. cel. & upto 90% non condensing

Measuring parameters:-

• Electrods : 3/5 leads
• ECG Acquisition : Patient cable and paddles
• Display : 2 Waveforms with HOUR and joule selected
• Lead : I, II, III, aVR, Avl, aVF, V
• Gain selection : 5/10/15/20mm/mv
• Sweep speed : 125, 25 or 50mm/sec.
• Heart rate range : 30-24 Dbpm
• Heart rate accuracy : +2bpm
• Frequency response : 0.05-40Hz
• CMRR : >100 Db
• Input impedance : >100MOhms

Recorder

• Type : High Resolution Thermal Array Recorder
• Printing speed : 25mm/sec
• Printing paper size : 57mm x 20Mtr
• Detail on print : HR, ECG w/f alongwith Energy delivery, Date, Time, Patient detail

Display

• Type : Colour TFT display
• Size : 7" diagonally
• Resolution : 800 x 480px

Electrical

• Power input : AC230V50Hz
• Battery rating : 14.8V/4400mAH, Li polymer
• Charging time : 8 hrs
• Operating time : 40-50 shocks(joules) or more than 3 hrs monitoring without printing

Model No

MODEL NO : VITAL WAVE      MAESTROS VITAL WAVE DEFIBRILLATOR BIPHASIC
